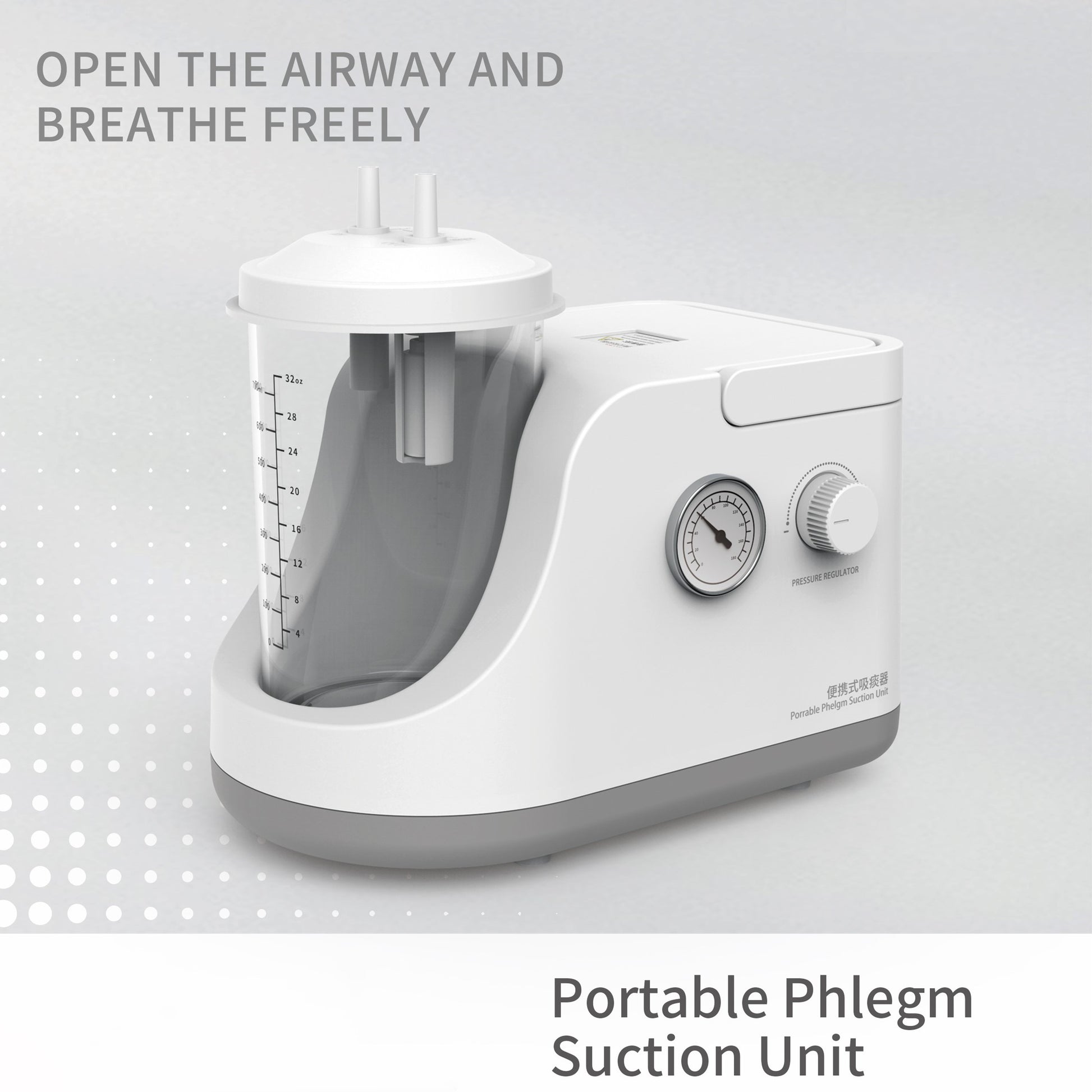

RR100SA Portable sputum aspirator Medical negative pressure suction pump

RR100SA Portable sputum aspirator Medical negative pressure suction pump

$169.00 USD
$199.00 USD $169.00 USD
Sale Sold out
Selling points analysis
1) Equipped with a negative pressure adjustment system for adjusting negative pressure as needed;
2) Fully plastic panel, resistance to water erosion;
3) Long airway tube, flexible and convenient during use;
4) Equipped with an overflow device to effectively prevent liquid from flowing into the vacuum pump;
5) Compact and light overall design, easy to carry;
6) Low noise, reducing interference to the surrounding environment;
7) Equipped with oil-free compression vacuum pump inside, which is safe, durable and pollution-free.
Introduction
    RR100SA portable sputum aspirator is a negative pressure suction device, which belongs to medical electrical equipment. The equipment uses AC power directly, with an oil-free piston negative pressure pump to generate negative pressure, and is in normal operation by connecting the guiding device and turning on the switch to adjust the negative pressure, which is quite easy. This product is mainly applicable to the treatment of patients with difficulty in voluntary sputum excretion in medical units at all levels.

Function
Sputum aspirator plays an important role in the treatment of respiratory diseases.
Portable sputum aspirator is of great significance in medical units at all levels for patients with difficulty in voluntary sputum excretion.

Specification
Scheme:AC220V,50Hz,15L
Power supply:AC220V,50Hz
Input power:≤170VA
Limit negative pressure value：≥0.070MPa
negative pressure adjustment range：0.02MPa~Limit negative pressure value
pumping rate：≥15L/min
liquid storage bottle：≥1000mL
Noise: ≤70dB
Type of protection against electric shock: Class Ⅱ
Degree of protection against electric shock: Type B applied part
Classified by operating mode: Short-time operating mode
Degree of waterproof and dustproof: IPX0
The safety degree with combustible gas: Not suitable for use in an environment with combustible gas

Scheme:AC220V,50Hz,18L
Power supply:AC220V,50Hz
Input power:≤230VA
Limit negative pressure value：≥0.070MPa
negative pressure adjustment range：0.02MPa~Limit negative pressure value
pumping rate：≥18L/min
liquid storage bottle：≥1000mL
Noise: ≤ 70dB
Type of protection against electric shock: Class Ⅱ
Degree of protection against electric shock: Type B applied part
Classified by operating mode: Short-time operating mode
Degree of waterproof and dustproof: IPX0
The safety degree with combustible gas: Not suitable for use in an environment with combustible gas

Scheme:AC110V,60Hz,18L
Power supply:AC110V,60Hz
Input power:≤140VA
Limit negative pressure value：≥0.070MPa
negative pressure adjustment range：0.02MPa~Limit negative pressure value
pumping rate：≥18L/min
liquid storage bottle：≥1000mL
Noise: ≤ 70dB
Type of protection against electric shock: Class Ⅱ
Degree of protection against electric shock: Type B applied part
Classified by operating mode: Short-time operating mode
Degree of waterproof and dustproof: IPX0
The safety degree with combustible gas: Not suitable for use in an environment with combustible gas

Operating environment
◆ Temperature: 5 ℃ ~ 40 ℃
◆ Relative humidity: 20 % ~ 80 %
◆ Atmospheric pressure: 860 hPa ~ 1060 hPa

Accessories
◆ A manual
◆ A suction pipe

Physical characteristic
Dimension: 280mm×180mm×175mm
Weight: 3.0Kg
