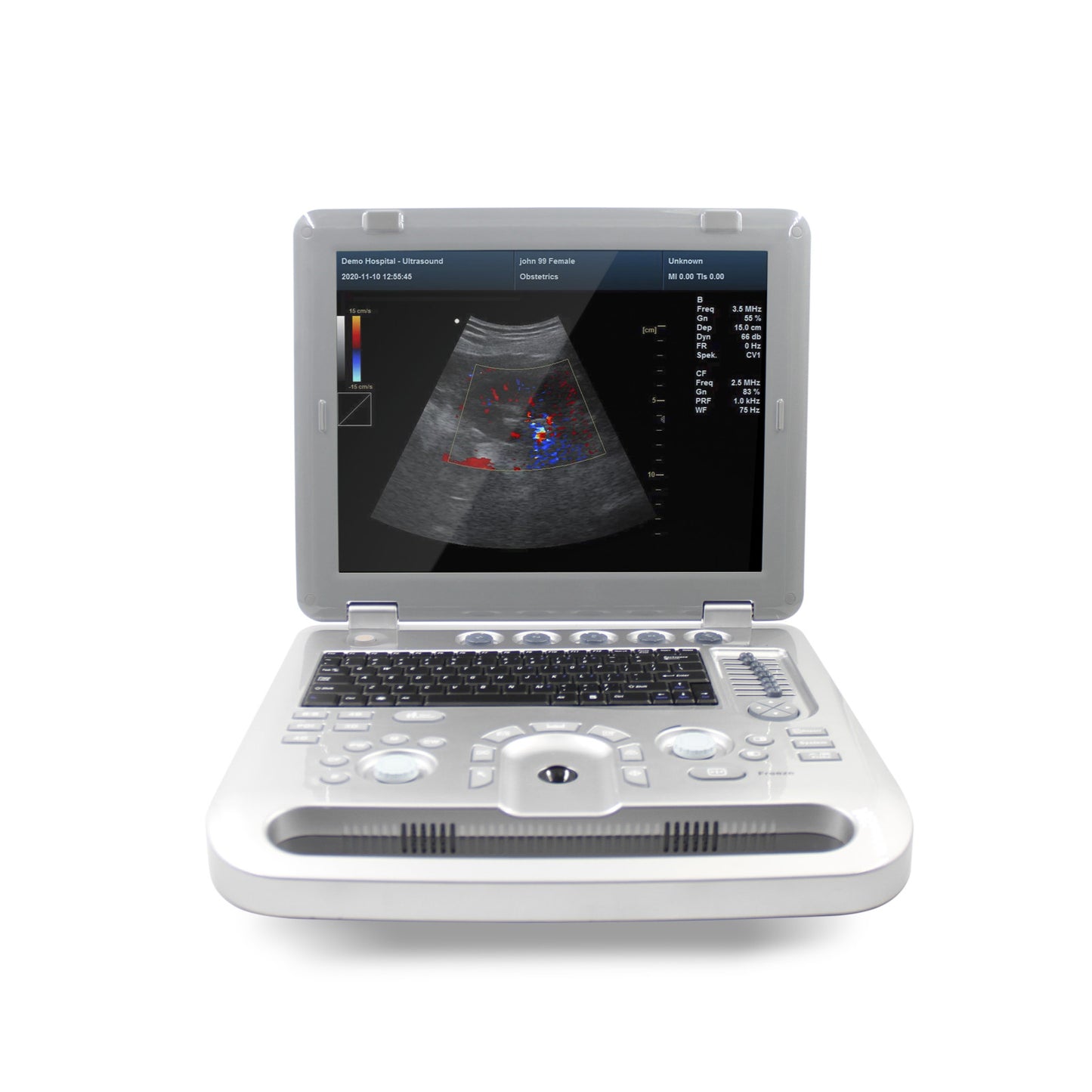

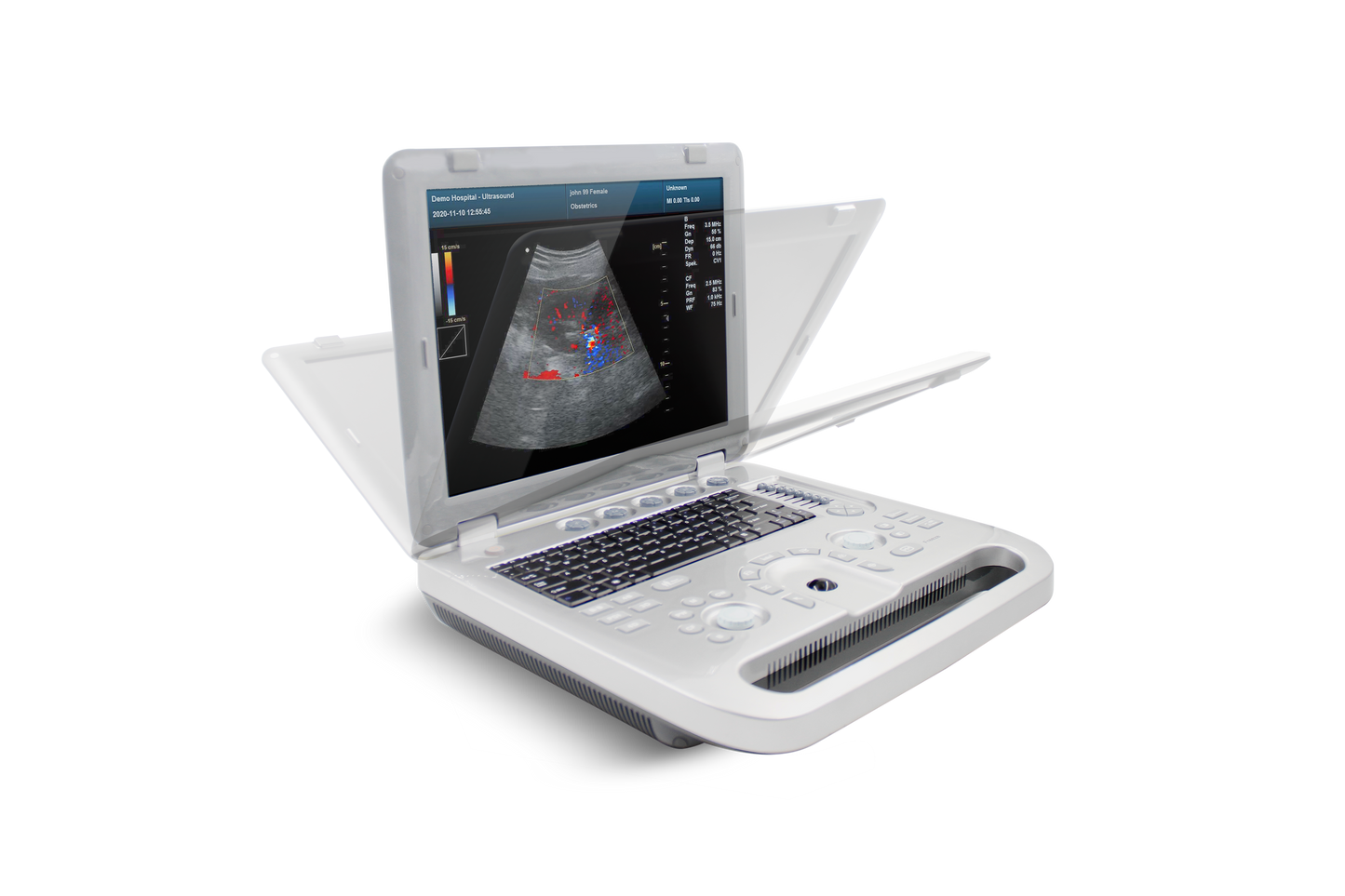

RR1700A Portable Color Doppler Ultrasound Scanner Machine+ Probe

It is a color Doppler Ultrasound diagnostic device with high resolution, which has a powerful computer processing platform. The system is mainly suitable for the diagnosis of abdomen, peripheral vessels, breast, obstetrics and gynecology, small organs, urology, muscle, incretion and pediatrics, etc. It adopts Doppler ultrasound imaging technology, advanced image processing technology (such as digital beam-forming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package can fully meet the clinic diagnostic requirement.

1) Color Doppler (CF), color power Doppler imaging (PDI).

2) Pulse spectrum Doppler (PW).

3) B+CF (Dual Images)

4) B+CF/PDI/DPDI+PW (Triplex)

5) Linear array deflection/trapezoid imaging.(optional)

6) Anatomic M-mode imaging.(optional)

7) Space compounding imaging

8) Tissue harmonic imaging (THI).

9) Wide scene imaging.(optional)

1) Display depth: 300 mm

2) Extended interface: one VIDEO interface, one USB interface, one VGA interface, two Probe interfaces.

Safety

● Type of protection against electric shock: class Ⅰ equipment

Degree of protection against electric shock: type BF applied part

● Operating voltage: AC 100 V~240 V

● Operating frequency: 50 Hz/60 Hz

● Power consumption: ≤ 100 VA

● One abdominal probe (3.5 MHz)

● One User Manual

● One power cord

● One adapter

Dimension: 370 mm (L) × 360 mm (W) × 80 mm (H)

Weight:6.5 kg
