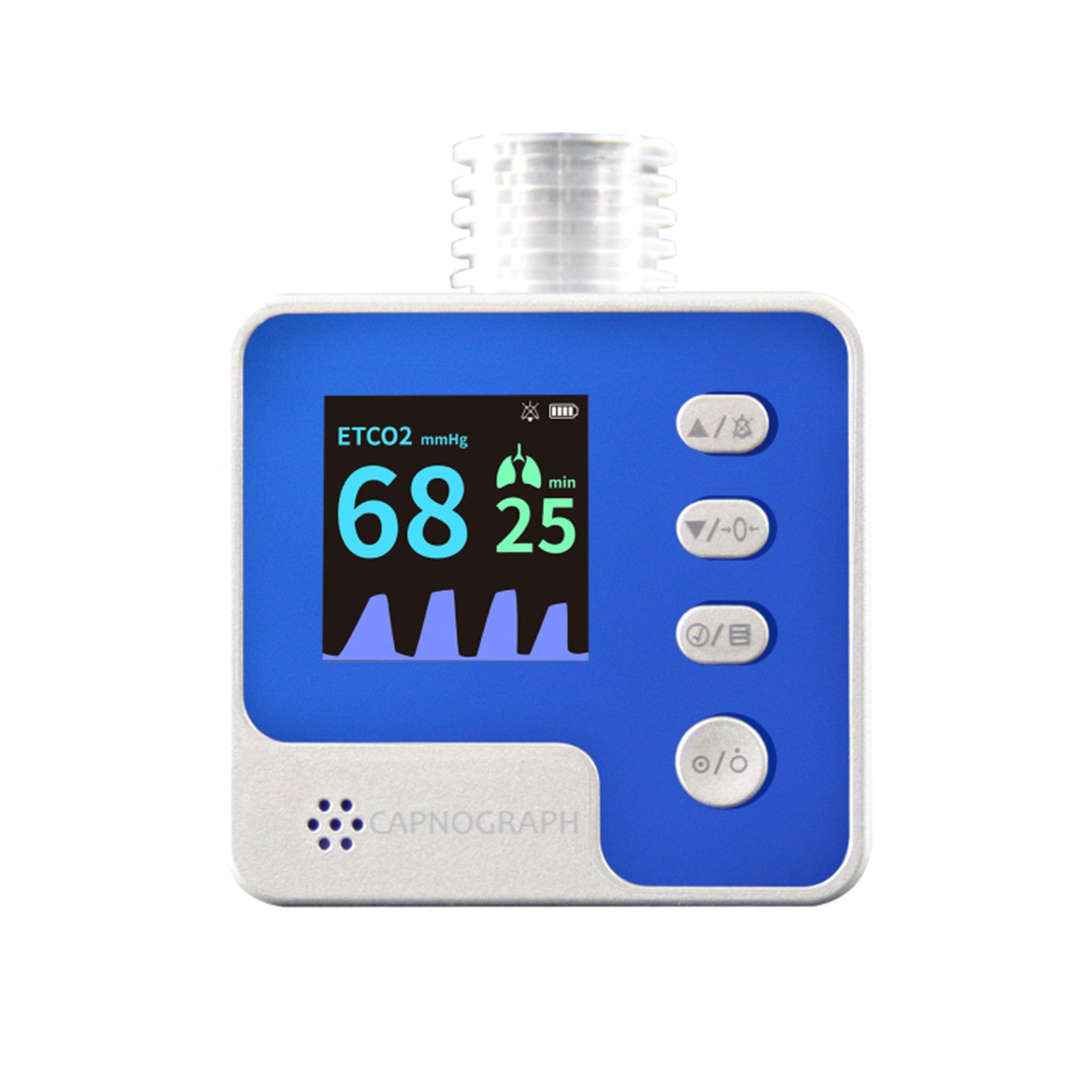

SR014 Mainstream ETCO2 Capnograph Respiration Rate End-tidal CO2 Monitor

SR014 Mainstream ETCO2 Capnograph Respiration Rate End-tidal CO2 Monitor

$269.00 USD
$299.00 USD $269.00 USD
Sale Sold out

Introduction

The device adopts mainstream method to measure the parameters related to EtCO2 and AWRR. It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow condition, as well as indirectly reflect the alveolar ventilation, which is applicable for use in emergency department, ICU, operating room, respiratory department and other occasions for adult and pediatric patients. The Capnograph connects with patient’ respiratory tract by the air adapter (applied part) and breathing tube. The breathing tube except for air adapter is not a part of the device.

Features
1)End-tidal CO2 measurement function;
2)Respiration rate measurement function;
3)Optional three units;
4)With audible and visual alarm and silencing functions, the alarm limit can be set;
5)Over-limit alarm function for End-tidal CO2 and respiration rate;
6)Low battery alarm function;
7)With the prompt function of “Adapter off”;
8)User can calibrate zero by themselves.
9)With atmospheric pressure and temperature compensation functions;
10)Install 2 AAA dry batteries, up to 4-hour user time.

Performance
End-tidal CO2 measurement:
1）Measurement range: 0 ~150mmHg
2）Resolution: 1mmHg
3）Accuracy:
0～40 mmHg：±2 mmHg
41～70 mmHg：±5% of readings
71～100 mmHg：±8% of readings
101～150 mmHg：±10% of readings
Respiration rate measurement:
1）Measurement range: 2rpm～150rpm
2）Resolution: 1rpm
3）Accuracy: ±1rpm
Safety characteristic:
1）Device type: internally powered equipment
2）The degree of protection against electric shock: type BF applied part
3）The degree of protection against ingress of liquid: IP22
Other parameters：
1）Preheat time：15s
2）Response time：< 3s
3）Alarm sound pressure level: 50 dB
4）Battery life time：4hours

Accessories
★ A User Manual
★ An Adult/Pediatric air adapter

Physical Characteristic
Dimension: 59×56×59.5mm
Weight: 92g (with batteries)
Working environment
Temperature: 5℃~40℃
