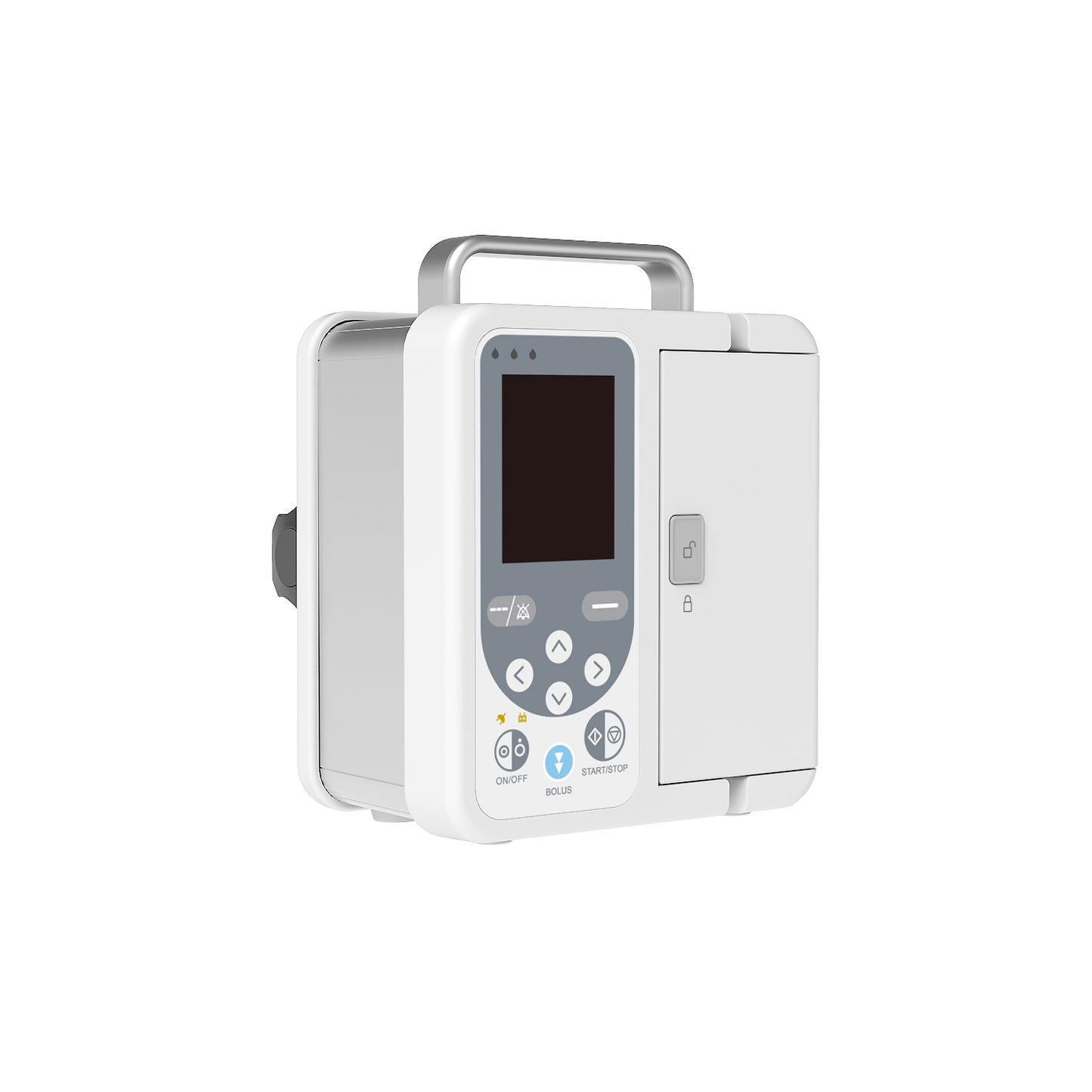

SR018 Infusion Pump Accurate Standard IV Fluid Medical Control with Alarm

1)Be compatible with multiple IV set brands, the new IV set can be calibrated, ensures the infusion accuracy.

2)Display real-time parameters (such as accumulated volume, remaining time) by the 2.8" TFT LCD.

3)Infusion reminder function.

4)The infusion parameters can be saved after shutdown.

5)Adopt a high-accuracy (0.02 ml) ultrasonic sensor.

6)Avoidance of free flow condition, avoids free flow of liquid when the door is opened.

7)Audible and visual alarm function, including occlusion, air bubble, door open, motor failure alarm.

8)After the infusion is completed, it will automatically operate at KVO rate.

9)Purging , be used for filling pipe and exhausting air.

10)Adjustable occlusion threshold (3 grades), be used for monitoring the real-time pressure.

11)Intelligent dual-way power supply (AC, built-in high capacity lithium battery).

◆ Type: volumetric infusion pump

◆ Infusion rate: 1~699 mL/h, increment: 1 mL/h

◆ Total volume: 1~9999 mL, increment: 1 mL

◆ Accuracy: ±5%(use the IV set calibrated)

◆ Display information: flow rate, total volume, accumulated infusion volume, residual time

◆ Safety classification: class I，type BF applied part

◆ Waterproof degree: IPX2

◆ Working mode: continuous working

◆ Alarm functions: near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, door open, occlusion, infusion reminder and motor failure.

◆ Air bubble detector: ultrasonic

◆ TFT: 2.8''

◆ KVO rate: 1 mL/h

◆ Sensitivity for pressure sensor: 1~3 grades(it can be adjusted by professional medical personnel)

◆ Power supply: 100-240 V~, 50/60 Hz

 Rechargeable Li-polymer battery, 7.4 V/5000 mAh

Special safety measures:

◆ Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally.

◆ Air bubble detector with high accuracy prevents air bubbles from entering patient’s body.

◆ Pressure sensor prevents occlusion for IV set.

◆ A.B.S system, when the high-voltage occlusion alarm appears, stop infusing immediately, and eliminate the pressure of the IV set automatically, which prevents instantaneous high-dose injection from the sudden obstruction disappearing.

◆ Infusion parameters during infusing are protected against being changed arbitrarily.

◆ With password protection function(in system parameter setting and IV set type interface).
